• 17"" X 8"" Chrome Clad Steel Wheels
• 3.73 Axle Ratio
• AM/FM Compact Disc Radio
• Cloth 40/20/40 Bench Seat
• Electronically Controlled Throttle
• Hood Insulation
• LT265/70R17E BSW AS Tires
• Mini Floor Console
• Rear Folding Seat
• YES Essentials Seat Fabric

• 12V pwr outlet
• 4-spoke steering wheel
• AM/FM stereo w/CD player-inc: (4) speakers, aux input jack
• Air conditioning
• Carpeted floor covering
• Cigar lighter
• Cloth 40/20/40 split bench seat
• Color-keyed instrument panel bezel
• Day/night rearview mirror
• Fixed long mast antenna
• Floor tunnel insulation
• Instrument cluster-inc: 120 MPH primary speedometer, tachometer
• Mini floor console
• Overhead console w/trip computer
• Passenger assist handle
• Passenger side visor vanity mirror
• Pwr accessory delay
• Pwr locks
• Pwr windows w/driver one-touch down
• Rear folding bench seat
• Rear underseat compartment storage
• Remote keyless entry
• Sentry Key theft deterrent system
• Speed control
• Stain & odor resistant, anti-static seat fabric
• Tilt steering column

• 10.5" rear axle ring gear diameter
• 136-amp alternator
• 17" x 8" steel chrome clad wheels
• 3.73 axle ratio
• 5200# front axle
• 6.3' pickup box w/removable tailgate
• 600-amp maintenance free battery
• 8800# GVWR
• Electronic shift-on-the-fly transfer case
• Electronically controlled throttle
• Four wheel drive
• Front stabilizer bar
• Full size spare tire w/17" steel wheel, winch type carrier
• HD front/rear shock absorbers
• LT265/70R17E all-season BSW tires
• Pwr 4-wheel anti-lock disc brakes
• Pwr steering
• Trailer tow wiring-inc: 4-pin connector

• "Next Generation" front airbags
• Dual note horn
• Front height adjustable shoulder belts
• Pwr 4-wheel anti-lock disc brakes

6.7L I6 CUMMINS TURBO DIESEL ENGINE

• 750-amp maintenance-free battery
• tow hooks
• diesel exhaust brake
• 11.50 rear axle
• 5.5 additional gallons of diesel
• current generation engine controller
• electronically controlled throttle
• over head console w/trip computer & EVIC

• Cloth Seats

• Electrical
• Cold Cranking Amps @ 0° F (Primary): 750
• Cold Cranking Amps @ 0° F (Primary): 600
• Maximum Alternator Capacity (amps): 136
• Maximum Alternator Watts: 1904
• Cooling System
• Total Cooling System Capacity (qts): - TBD -
• Total Cooling System Capacity (qts): 18.7
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 5200
• Gross Axle Wt Rating - Rear (lbs): 6010
• Curb Weight - Front (lbs): 3632
• Curb Weight - Rear (lbs): 2666
• Gross Vehicle Weight Rating Cap (lbs): 9000
• Gross Vehicle Weight Rating Cap (lbs): 8800
• Gross Combined Wt Rating (lbs): 20000
• Gross Combined Wt Rating (lbs): 15000
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 9350
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 935
• Suspension
• Suspension Type - Front: Coil
• Suspension Type - Rear: Leaf
• Axle Type - Front: Hypoid
• Axle Type - Rear: Full-floating
• Axle Capacity - Front (lbs): 4750
• Axle Capacity - Front (lbs): 4000
• Axle Capacity - Rear (lbs): 6150
• Axle Ratio (:1) - Front: 3.73
• Axle Ratio (:1) - Rear: 3.73
• Shock Absorber Diameter - Front (mm): - TBD -
• Shock Absorber Diameter - Rear (mm): - TBD -
• Stabilizer Bar Diameter - Front (in): - TBD -
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 13.9 x 1.26
• Rear Brake Rotor Diam x Thickness (in): 13.9 x 1.18
• Tires
• Front Tire Order Code: TT3
• Rear Tire Order Code: TT3
• Spare Tire Order Code: TBB
• Front Tire Size: LT265/70R17E
• Rear Tire Size: LT265/70R17E
• Spare Tire Size: LT265/70R17E
• Front Tire Capacity (lbs): 3190
• Rear Tire Capacity (lbs): 3190
• Spare Tire Capacity (lbs): - TBD -
• Revolutions/Mile @ 45 mph - Front: - TBD -
• Revolutions/Mile @ 45 mph - Rear: - TBD -
• Revolutions/Mile @ 45 mph - Spare: - TBD -
• Wheels
• Front Wheel Size (in): 17 x 8.0
• Rear Wheel Size (in): 17 x 8.0
• Spare Wheel Size (in): 17 x 8.0
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr Rack & Pinion
• Steering Ratio (:1), On Center: - TBD -
• Steering Ratio (:1), At Lock: - TBD -
• Turning Diameter - Curb to Curb (ft): 44.6
• Turning Diameter - Wall to Wall (ft): - TBD -
• Frame
• Frame Type: Ladder
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 34
• Fuel Tank Location: Inboard Frame Rails
• Exterior Dimensions
• Wheelbase (in): 140.5
• Length, Overall w/o rear bumper (in): 227.7
• Width, Max w/o mirrors (in): 79.9
• Height, Overall (in): 78.6
• Overhang, Front (in): 39.4
• Overhang, Rear w/o bumper (in): 47.9
• Front Bumper to Back of Cab (in): - TBD -
• Cab to Axle (in): - TBD -
• Cab to End of Frame (in): - TBD -
• Ground to Top of Load Floor (in): 36.3
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): - TBD -
• Ground Clearance, Front (in): 12.9
• Ground Clearance, Rear (in): 7.1
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 76.3
• Cargo Box Width @ Top, Rear (in): - TBD -
• Cargo Box Width @ Floor (in): 70.2
• Cargo Box Width @ Wheelhousings (in): 51.0
• Cargo Box (Area) Height (in): 20.2
• Tailgate Width (in): 60.6
• Cargo Volume (ft³): 60.9
• Ext'd Cab Cargo Volume (ft³): 56.7
• Interior Dimensions
• Passenger Capacity: 6
• Front Head Room (in): 40.2
• Front Leg Room (in): 41.0
• Front Shoulder Room (in): 67.0
• Front Hip Room (in): 65.1
• Second Head Room (in): 40.0
• Second Leg Room (in): 36.4
• Second Shoulder Room (in): 66.7
• Second Hip Room (in): 64.6
• Summary

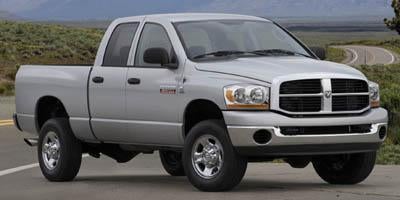

• Vehicle Name: Dodge Ram 2500
• Body Style: Quad Cab 6.3' Box
• Body Code: 140.5" WB
